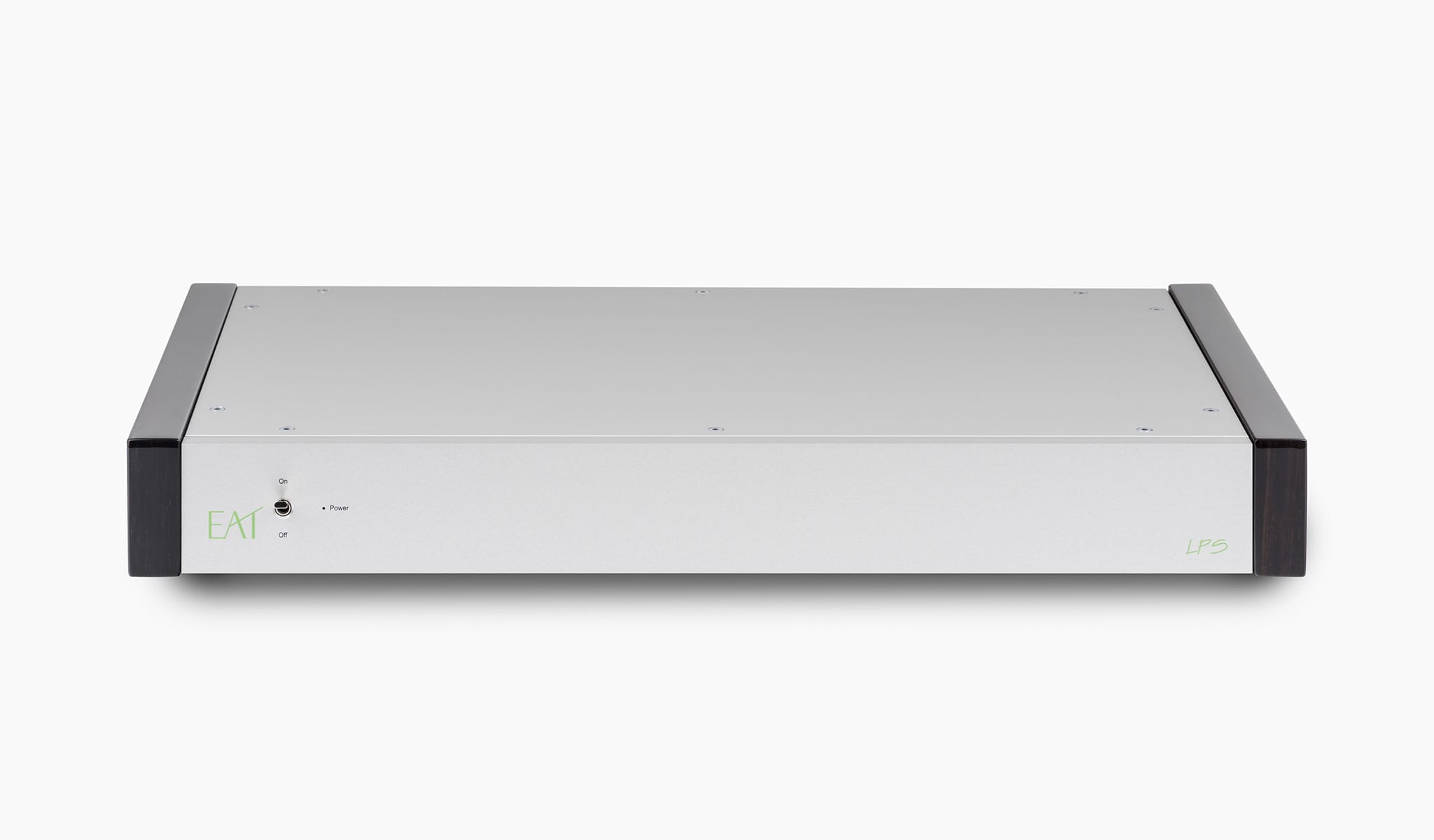

E.A.T. LPS Linear Power Supply

E.A.T. LPS Linear Power Supply

Elegant power supply. We at E.A.T. strongly believe that power supply is a part of signal path and the quality of power supply extremely significantly contribute to the sound quality. It is done without any compromise.

Full bridge rectifying use for ultra-fast diodes followed with 8800uF filtration bank. Voltage regulator is fully discrete. No operational amplifier is used. Voltage reference is TL431. This all result in very low noise and perfect regulation. In many aspects it also over-performing battery power supply. Ripple voltage is lower than 1 microvolt! Voltage accuracy is better than ± 0,05%. The temperature drift is beyond every level of standard power supplies. LPS is Dedicated for E.A.T. phono stages and turntables.

  • Dual output
  • Clean power supply
  • Two separate power supplies in one!
  • RFI eliminated from mains
  • Elegant looks

E.A.T. LPS Linear power supply technical information

ModelE.A.T. LPS Linear Power Supply
Input Power supply120V or 230V AC
Output voltage / current1 × 15V/2A ± 0,05%, noise max. 10uV
Output voltage / current 1 × 18V/1.5A ± 0,05%, noise max 1uV
Dimensions W × H × D435 × 60 × 272 mm
Available inSilver
Weight4900 g
Supplied cables1 × 15V 2.1mm (for E.A.T. C-Sharp, EAT C-Major and all Pro-Ject turntables)
1 × 15V XLR 4Pin (for E.A.T. E-Flat, E.A.T. Forte S)
1 × 18V 2.5mm (for E.A.T. E-Glo S, EAT Forte and all Pro-Ject Phono products except Phono Box RS and AD Box S2 Phono)
1 × 18V 2.1mm with longer connector shaft 14mm for Pro-Ject Xtension turntables
