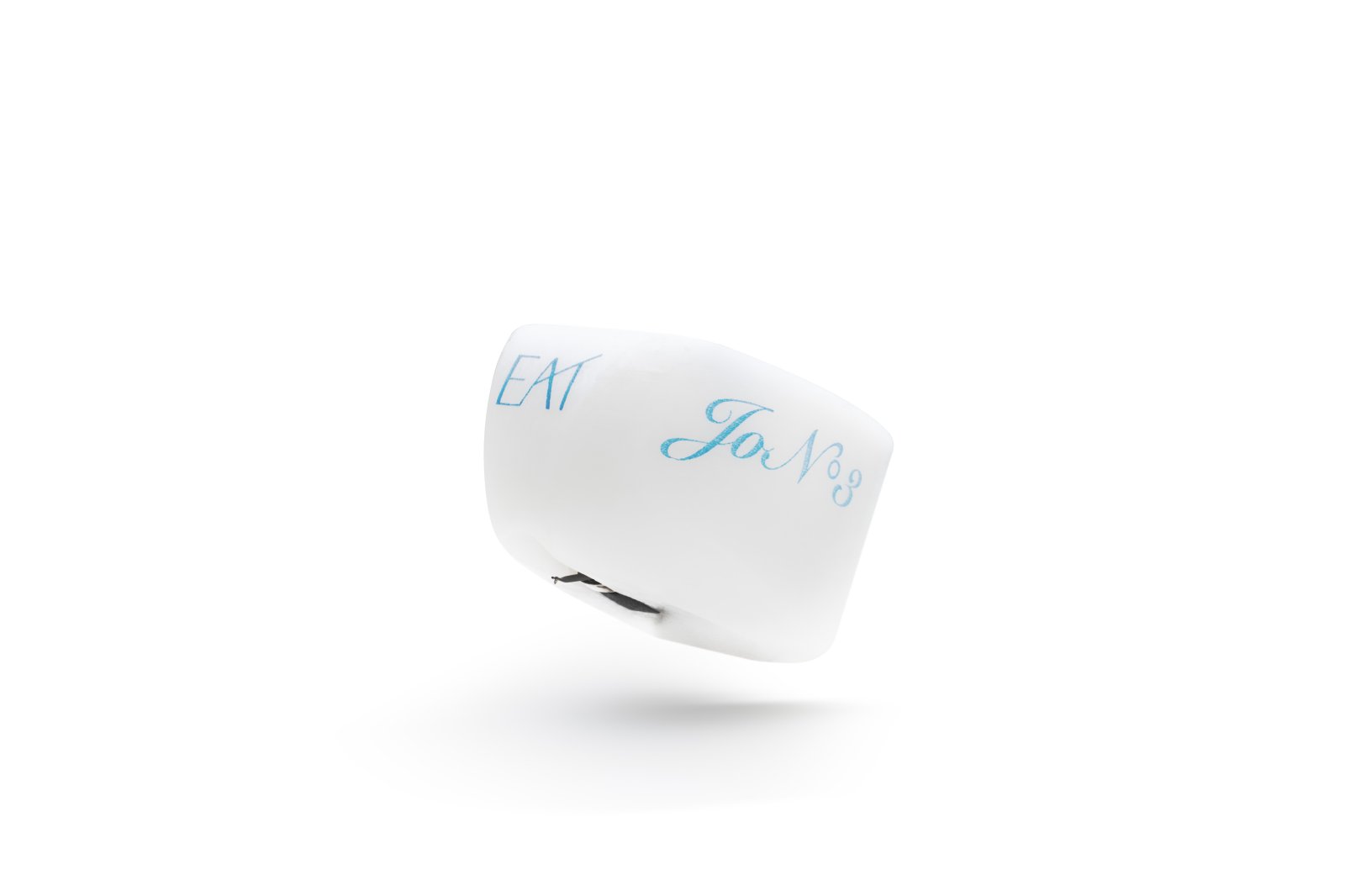

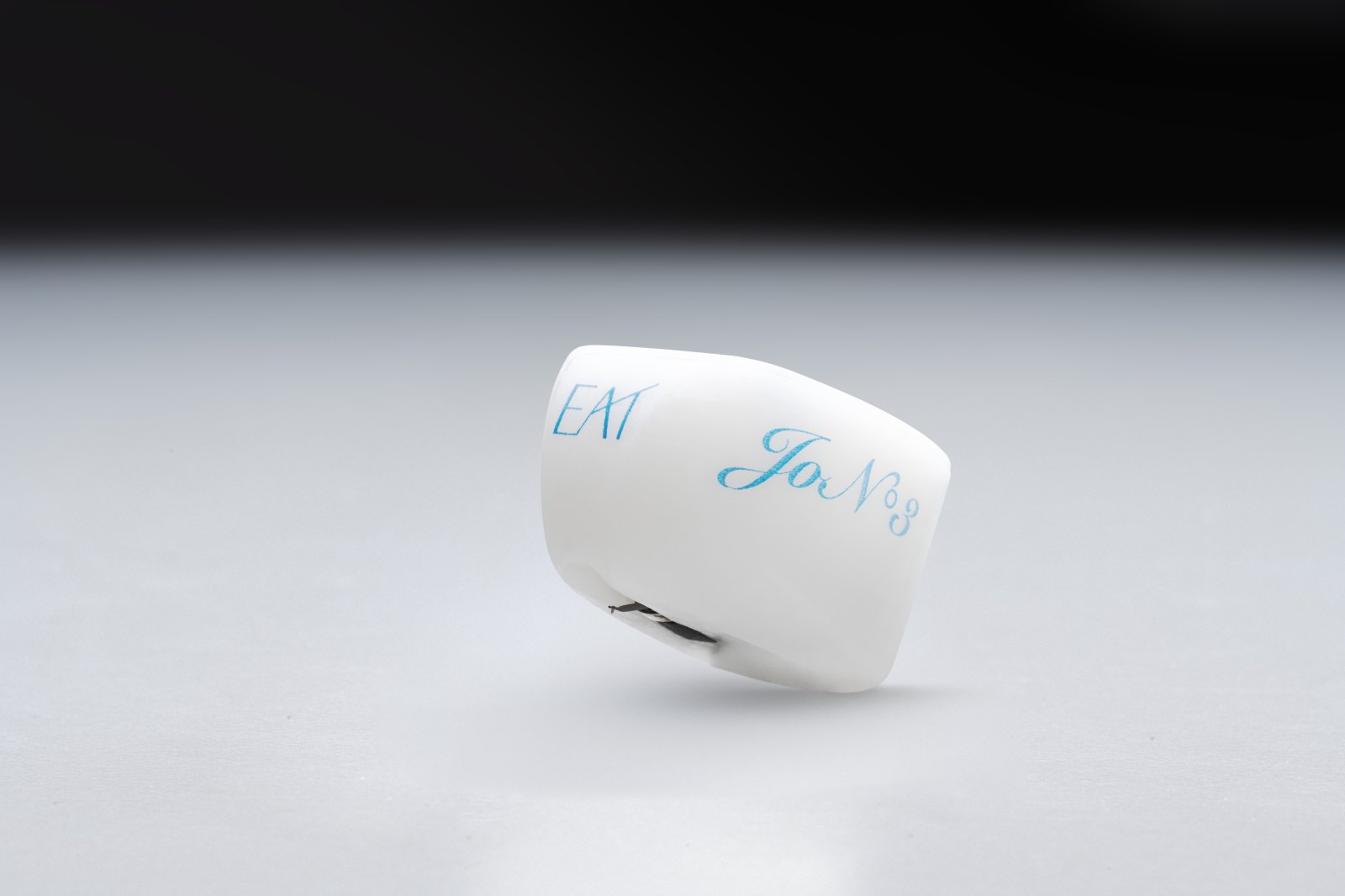

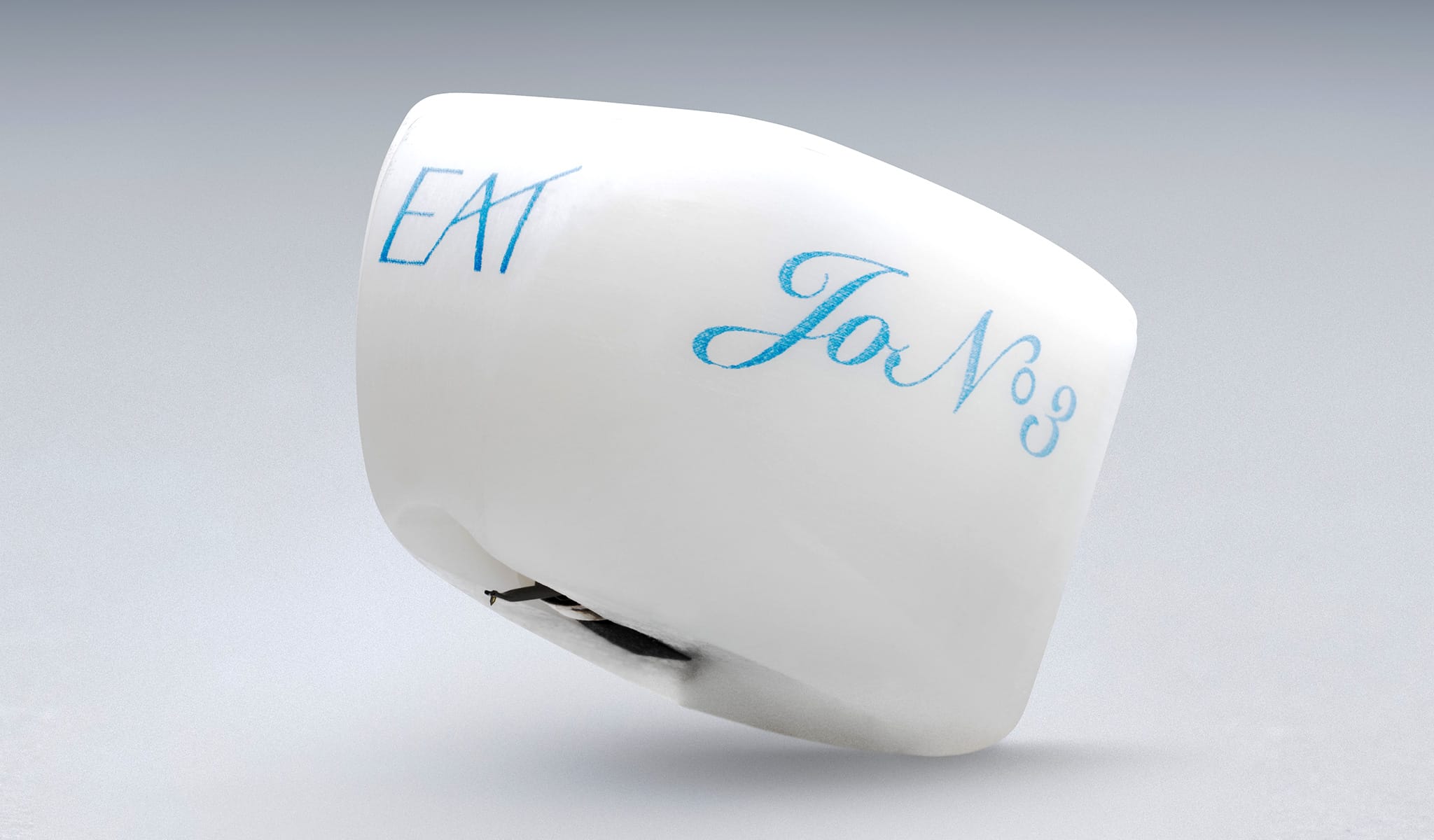

E.A.T. Jo N°3 Cartridge
High End E.A.T. MC cartridge.
- High end nude elliptical stylus radius
- Pure silver coil for superior conductivity
- Precise body made of ABS
- Selective laser sintering manufacturing process
- Neodymium magents
- 1/2 inch mounting standard
- Threaded holes for simple mouting without nuts
- Carefully handmade by experts in Europe
E.A.T. Jo N°3 Cartridge technical information
| Cartridge type | Moving-coil |
|---|---|
| Stylus type | Nude Elliptical – r/R = 8/18 μm |
| Frequency response | 20Hz – 30kHz |
| Tracking ability | 75 μm |
| Output voltage | 0.5 mV @ 1kHz, 3,54cm/sec |
| Channel separation | >23 dB @ 1kHz |
| Output balance | < 1 dB @ 1kHz |
| Vertical tracking force | 2.1 – 2.5 g |
| Recommended impedance | > 20 Ohm |
| DC-resistance | 7 Ω |
| Dynamic compliance | 15 μm/mN |
| Vertical tracking angle | 20° |
| Weight | 15g |
