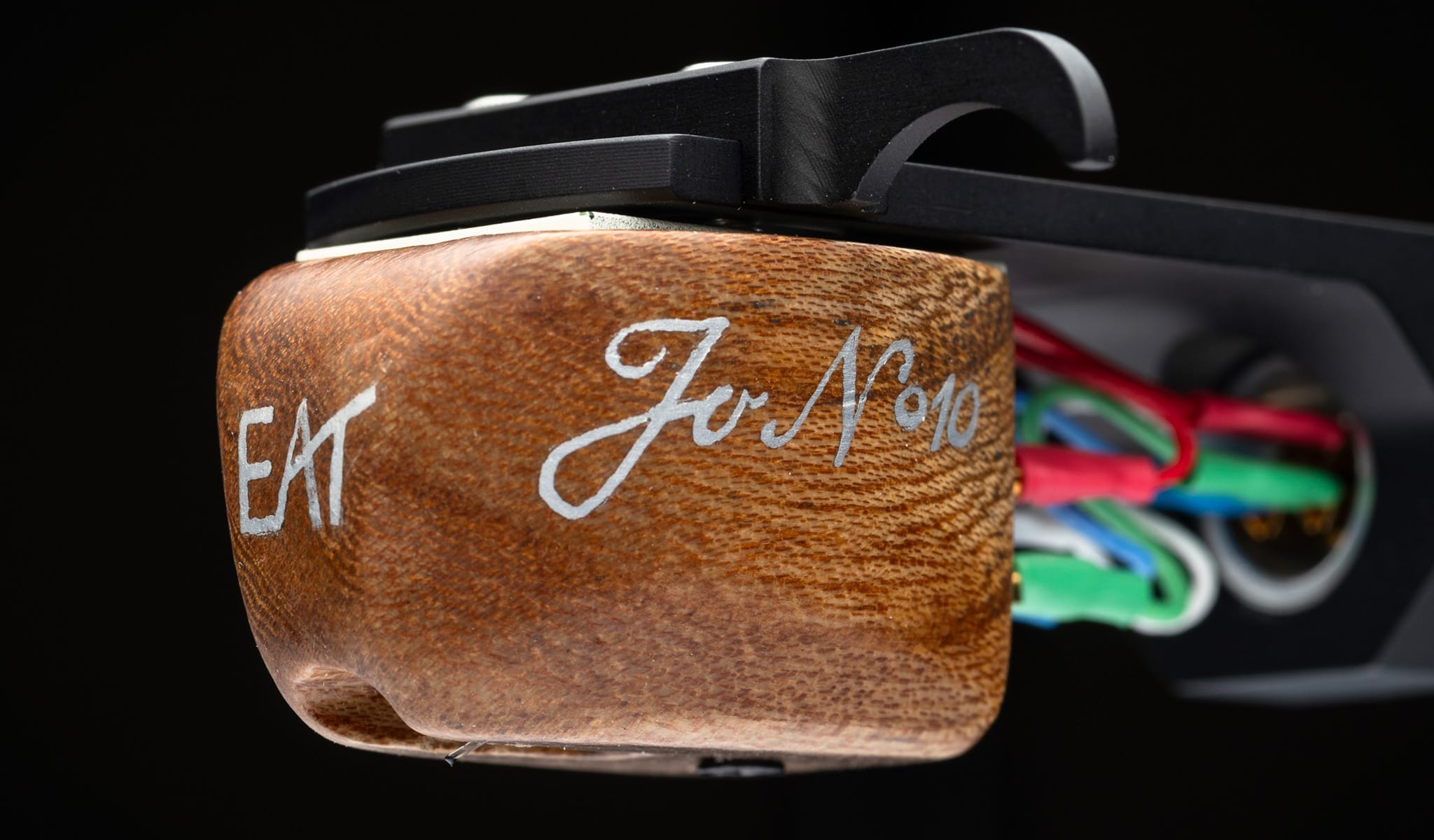

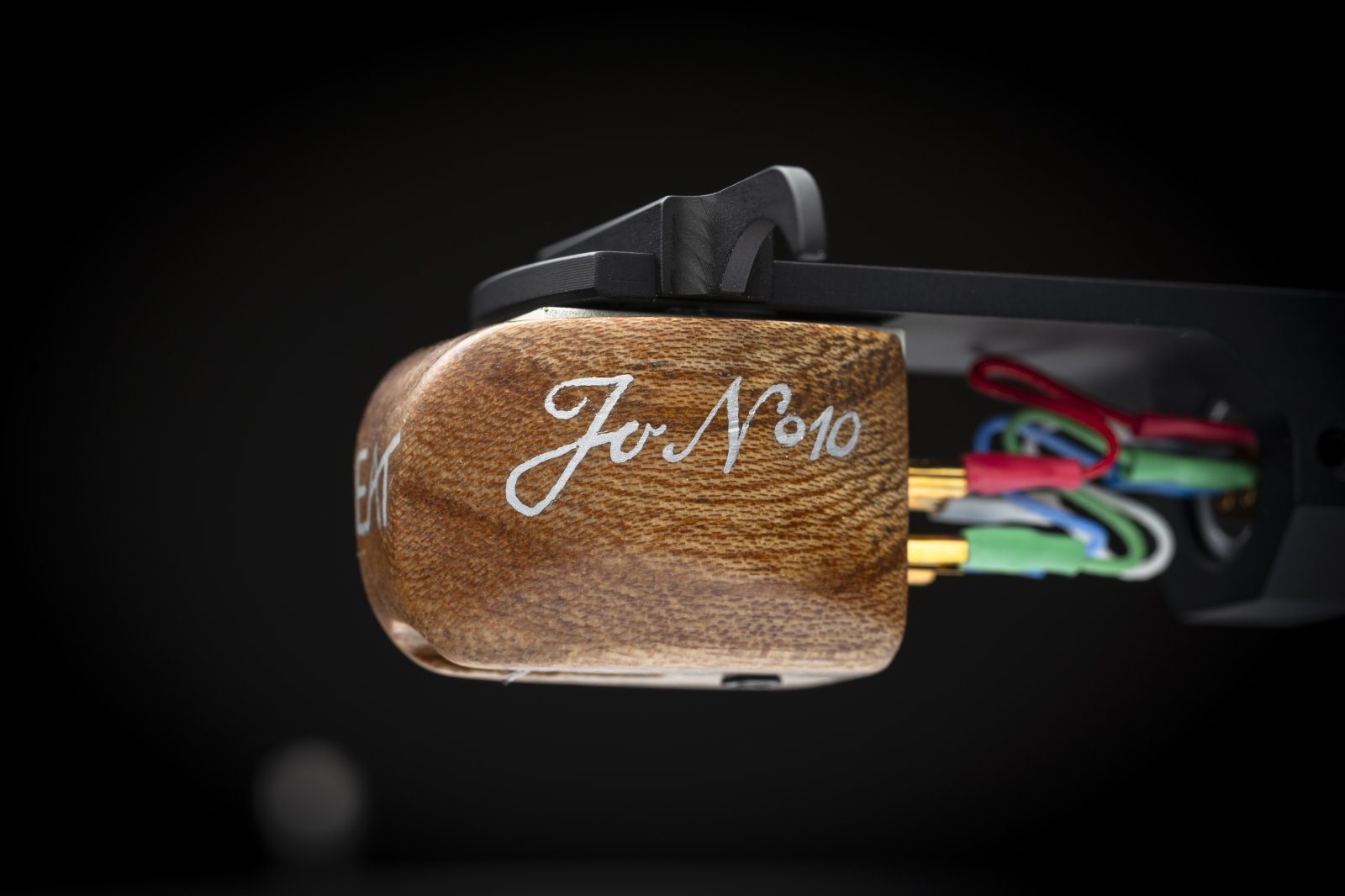

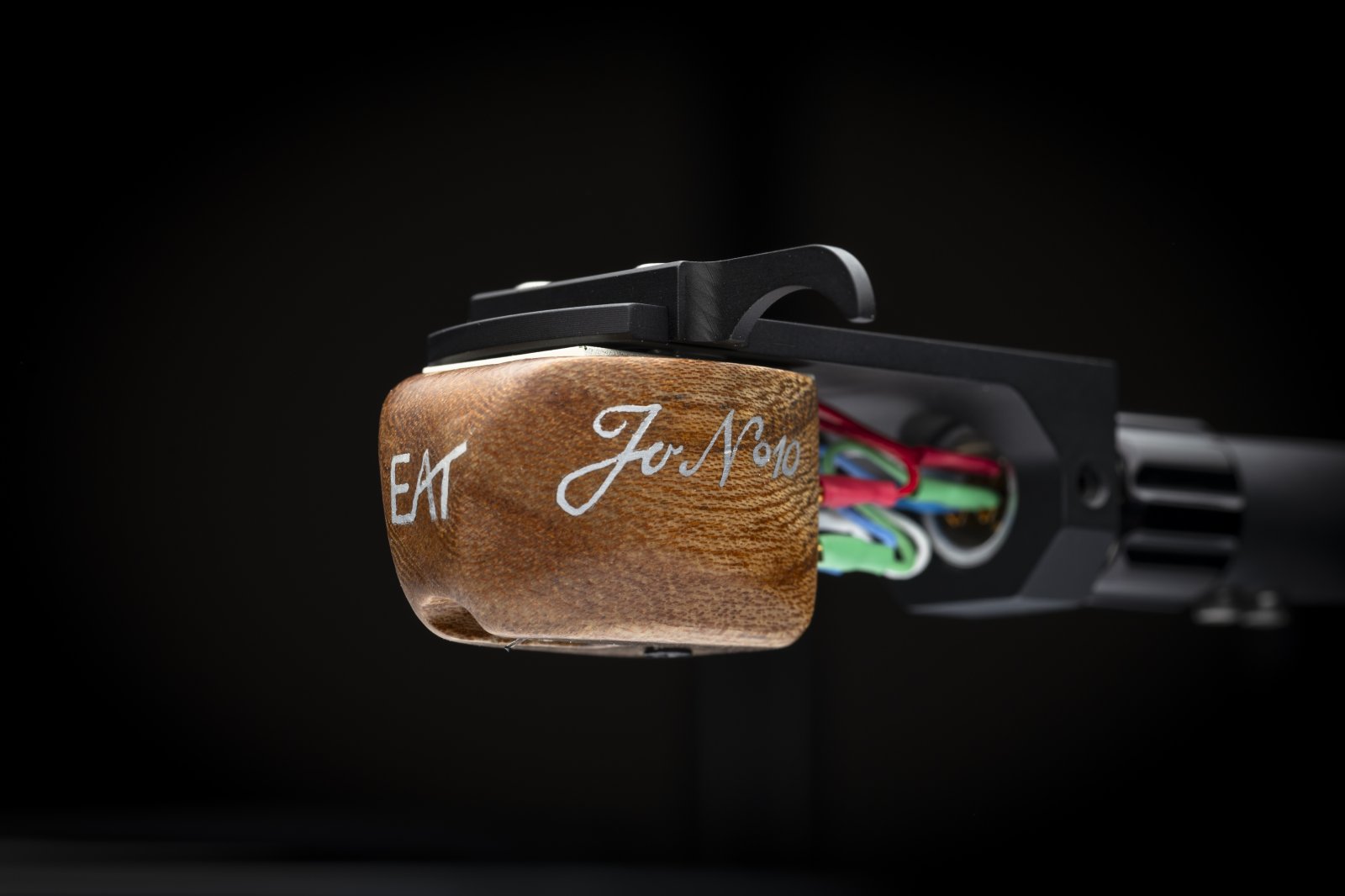

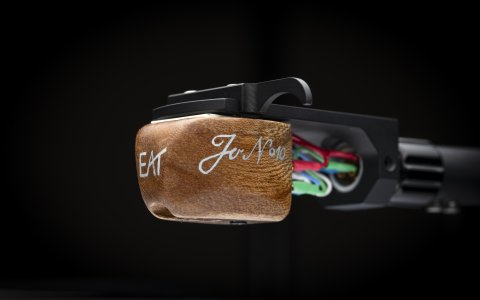

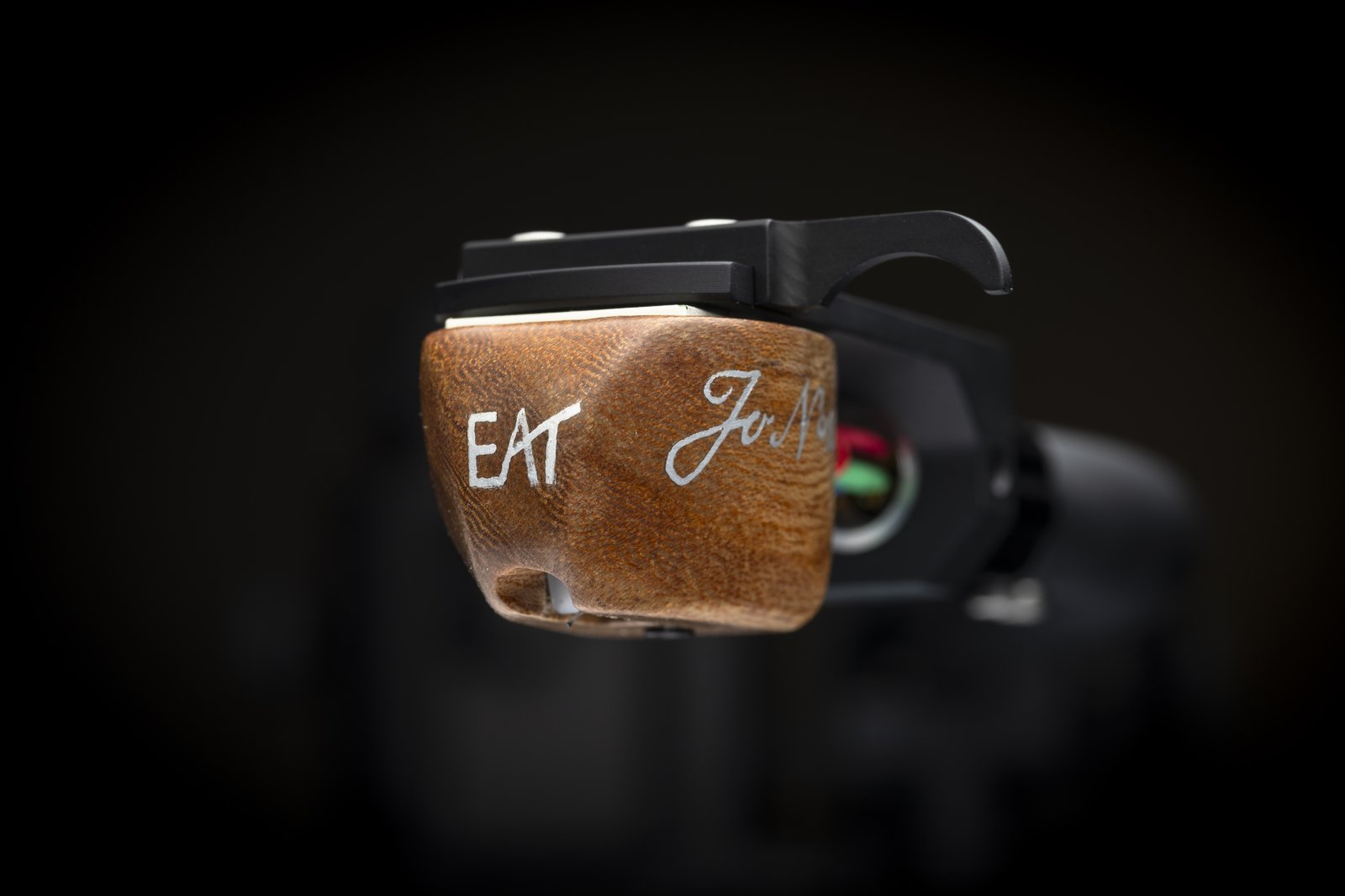

E.A.T. Jo N°10 Cartridge
Unique High End MC cartridge
- Unique natural diamond cantilever
- High end micro ridge stylus radius
- Uniquely developed stylus glue
- Cryogenic treated yoke
- Special high density wooden body sourced from Europe
- Violin Shellac surface treatment
- Wooden body hand-labeled by dedicated restorer person
- 1/2 inch mounting standard
- Threaded holes for simple mouting without nuts
- Carefully handmade by experts and artistic persons in Europe
- Jo N°10 is made only for high performance audio systems. We do not recommend it for entry and mid level systems.
E.A.T. Jo N°10 Cartridge technical information
| Cartridge type | Moving-coil |
|---|---|
| Stylus (tip radius) | Micro ridge (r/R = 3/80 μm) |
| Frequency response | 20Hz – 30kHz |
| Tracking ability | 100 μm |
| Output voltage | 0.32 mV @ 1kHz, 3,54cm/sec |
| Channel separation | > 28 dB @ 1kHz |
| Output balance | 0.5 dB @ 1kHz |
| Vertical tracking force | 1.6 – 1.8g |
| DC-resistance | 15.7 Ω |
| Coil inductance | 26H (1kHz) |
| Dynamic compliance | 15 μm/mN |
| Vertical tracking angle | 20° |
| Weight | 12g |
