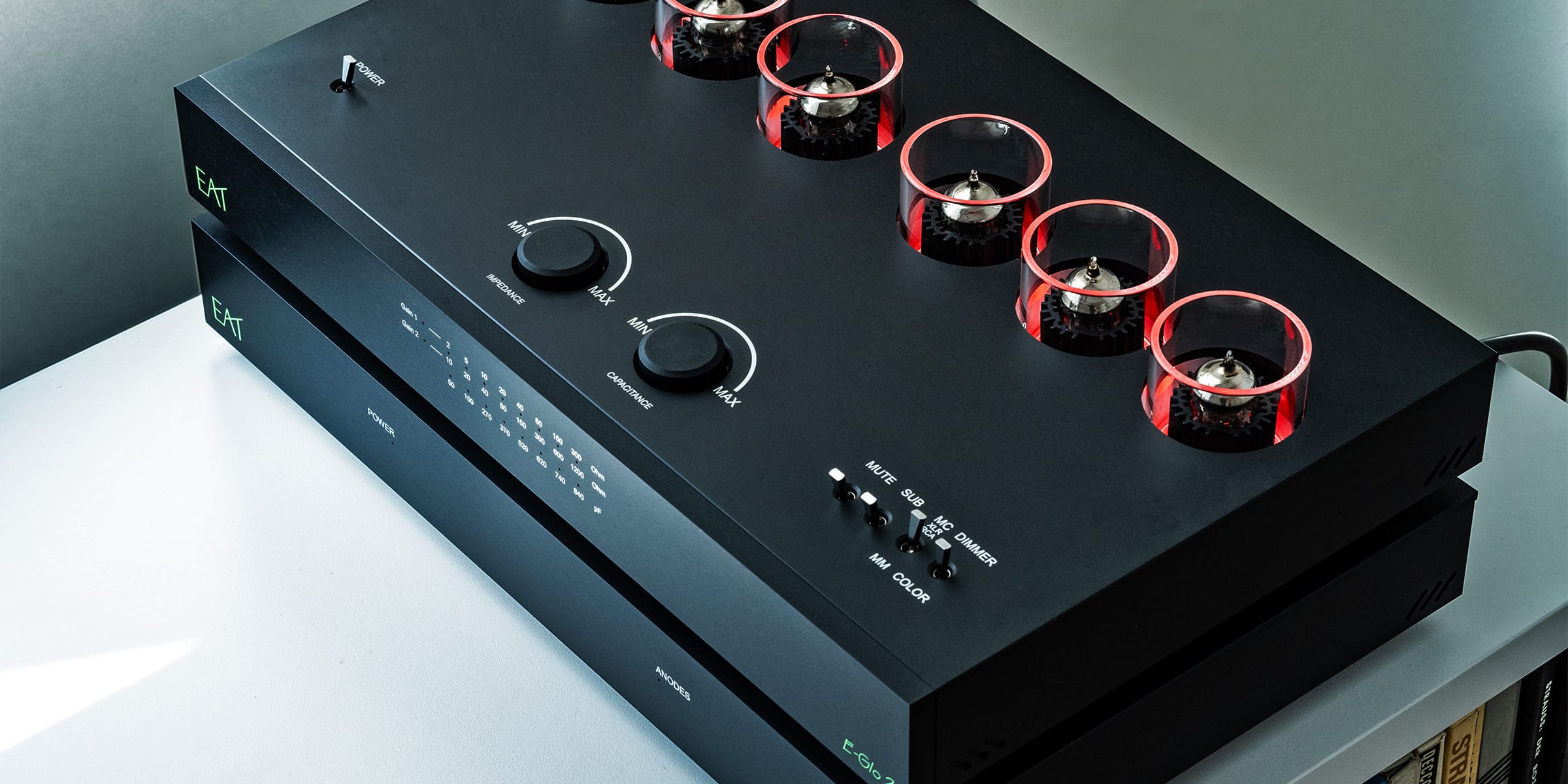

E.A.T. E-Glo 2

E.A.T. E-Glo 2

Input impedance MC 10,20,40,80,150,300,600,1200 Ohm / 70dB
2,5,10,20,40,80,150,300 Ohm / 76dB
Load capacity MM 50,150,270,370,520,620,740,840 pF
Output impedance < 150 ohms
Gain MM 46dB
Gain 1 MC 76dB
Gain 2 MC 70dB
Signal to noise ratio MM 74dBV (95dBV – IEC -A)
MC 74dBV (85dBV – IEC -A)
THD (MM / MC) <0,1% / 1V RMS
RIAA accuracy within 0,3dB/20Hz – 20kHz
Subsonic 12dB/Octave
Input MM: RCA
MC: RCA, XLR
Output RCA
Power supply 230V/115 VAC selectable on the back panel, 50/60Hz /52VA
Consumption 52 VA maximum, <0.5 W in standby
Dimensions (W × H × D) 395 × 86 × 262 mm E-Glo 2 Phono Preamplifier Unit
395 × 61 × 280 mm E-Glo 2 Power Supply Unit
Weight 5,3 kg E-Glo 2 Phono Preamplifier Unit
5,4 kg E-Glo 2 Power Supply Unit
